KBII™

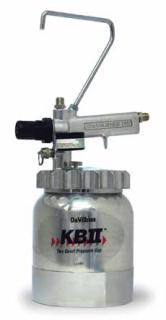

Pressure Cup
EZ Liner Kit
for KBII
Order No.
Model No.
120033 KB-555
Refer to Service Bulletin: SB-4-205
Comfortable
to carry.
Easy clean ups with
disposable liners
l
Recommended spare parts.
+ A secondary handle (3) has been provided with each cup. May be
used for "Belt Hanging."
Suffixes:
-K2, -K3, -K5, -K6 designate kits of multiple parts.
Example: KB-81-K5 is a kit of 5 Slip Rings.
KBII™ Pressure Cup and Liner Kit
Order No.
Model No. Capacity
Regulation
¾" H.P. Direct Drive
Air Driven Agitation
Included
120033
KB-555
2-qt.
Yes
N/A
192025
KK-5051
EZ Liner Kit for KBII
Order No. Model No.
192025 KK-5051
Aluminum Fluid Tube Kit
190864 (KK-4997)
(Not waterborne compatible)
Ref.
No. Description
Qty.
10 Locknut
1
25 Gasket
1
26 Fluid Tube Assembly 1
Stainless Steel Fluid
Tube Kit 190863
(KK-4996)
For waterborne
compatibility use
KK-5051 disposable
cup liners and KK-4996
Fluid Tube Kit
Ref.
No. Description
Qty.
10A Locknut
1
25A Gasket
1
26A Fluid Tube
Assembly
1
192026 (KK-5052) ADAPTER FITTING & HOSE KIT
Allows flushing of cup tube, hose and gun using
SolventSaver
™
. Kit includes: HD-410 adapter fitting
and 2' hose assembly.
28
KB II
Solvent
Saver
™
Ref.
No.
Order
No.
Model
No.
Description
Ind.
Parts
Req.
1 190573 KB-64
Retaining Ring
1
l
2 190577 KB-81-K5 Slip Ring (Kit of 5)
1
+3 190575 KB-74
Handle – Secondary
1
4 (purchase locally) Nut 5/16" -18
1
5 190287 P-MB-51 Adapter
2
l
6 190574 KB-66
Pressure Bleed Valve
(For KB-555)
1
7 190901 KB-70
Lid w/handle (For KB-555)
1
8 190761 GA-355
Pressure Gauge 0-30 PSI
1
l
9 190576 KB-80-K5 Gasket (Kit of 5)
1
10 190249 MBD-11-K5 Locknut (For KB-555, Kit
of 5)
1
u
10A —
Locknut
1
11 190578 KB-422
2 qt. cup (For KB-555)
1
l
12 191200 KB-432-K3 Check Valve (Kit of 3)
1
l
13 190692 KB-85-K5 Gasket (Kit of 5)
1
14 190582 TIA-4355 Safety Valve
1
15 190848 KB-428-1 Regulator Assembly
1
16 — — Valve Spring
1
17 — — Valve, PTFE
1
18 — — Valve Seat & O-Ring
Assembly
1
19 — — Diaphragm, PTFE protected 1
20 — — Slip Ring
1
21 — — Regulator Spring
1
22 — — Nut
1
23 — — Adjusting Screw
1
24 — — Bonnet
1
u
25 190175 KB-60-K6 Gasket (Kit of 6)
1
26
— Fluid Tube Assembly
(Aluminum)
1
u
26A
— Fluid Tube Assembly
(Stainless Steel)
1
27 190864 KK-4997 Fluid Tube Kit –
(Aluminum for KB-555)
1
27A 190863 KK-4996 Fluid Tube Kit –
(Stainless Steel)
1
28 192026 KK-5052 Adapter Fitting & Hose Kit
1
29 192025 KK-5051 Cup Liner Kit
1
*ITEM #5
Apply thread
sealant
(i.e. Loctite
#242 Med.
Strength
Blue or
equivalent)
onto threads.
5*
5
1
2
3
4
6
7
8
9
10
11
27
27/27A
26/
26A
25
24
23
22
21 20
19
14
12
13
18
17
16
15
Fluid Outlet
3/8" NPS (M)
Air Inlet
1/4" NPS (M)
Air
Outlet
1/4"
NPS
(M)
www.autorefinishdevilbiss.com
Pressure Tanks and Cups
