Refer to Service Bulletin: SB-6-182
Completely
portable – Allows
placement at
point of use
CT30 &
CT30P
Desiccant
cartridge
dryers
Easy Change
Desiccant Air Dryer
•CT series desiccant air dryers remove
water vapor from the compressed air
down to a dew point of -40° F
•Quick change 10 lb. desiccant
cartridge bag is made of a special fiber
media which removes oil aerosols and
solid particles down to 0.1 micron—
meaning no need for coalescing or
final filters
• Install at point of use
• 30 CFM air flow capacity
CT Desiccant Cartridge Dryer
Order No. Description
130500
Desiccant Air Dryer wall mount
130501
Desiccant Air Dryer portable with stand
130501 (CT30-P)
Patent No.
7361214
Order No.
130500
CT30 Wall Mount
Order No.
130501
CT30-P Portable
*
The Material Safety Data Sheet (MSDS-52) is available upon request.
1
3
2
Air Inlet

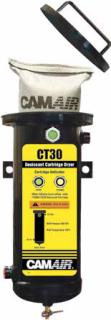

130500 Dryer Shown
Air Outlet
Specifications
Air Inlet
½" NPT (Female)
Air Outlet
½" NPT (Female)
Air Flow Capacity
30 CFM
Maximum Operating Pressure 200 PSIG (14 Bar)
Maximum Temperature
150˚F (65.6˚C)
Humidity Indicator
Green: OK
Yellow: Replace Desiccant
Water Vapor Removal
-40˚F Dew point
Partical Removal
0.1 micron
Manual Drain
Included
Ref.
No. Order No. Description
Ind.
Parts
Req.
1 130505 Humidity Indicator
(1 Humidity Indicator Paper included)
1
2 130511 Drain (Manual)
1
3 130510 Gasket
1
*4 130504 Desiccant Cartridge (not shown)
1
www.autorefinishdevilbiss.com
Air Control
35
