TEKNA
®
ProLite Air Caps
HV30
air cap
(HVLP)
Base coats, clearcoats
Air Cap Order/Model No
703540
14.5-16.5 CFM @ 20-24 PSI inlet
for HVLP approved areas
Air Cap
Pattern
13-14"
TE10
air cap
(HE)
Base coats, low solids
clearcoats
Air Cap Order/Model No.
703538
7.5-11.0 CFM @ 20-35 PSI inlet
Air Cap
Pattern
12-13"
TE20
air cap
(HE)
Base coats, high solids
clearcoats
Air Cap Order/Model No.
703539
9-12 CFM @ 16-26 PSI inlet
Air Cap
Pattern
12-13"
Fluid
Tips
1.2mm, 1.3mm, 1.4mm, 1.5mm
TEKNA
®
ProLite Basecoat/Clearcoat
Gravity Feed Spray Guns
Order No. Fluid Tips
Cup
Air Caps
703517*
1.3 & 1.4 mm Uncupped
TE20, HV30
703567*
1.2, 1.3, 1.4 mm Uncupped
TE10, TE20
703566
1.2, 1.3, 1.4 mm 900 cc Aluminum TE10, TE20
* Uncupped guns include disposable cups adapter
Air Cap Replacement Parts
Air Cap
Order No. Application
Air Cap
No.
Recommended
Inlet Pressure
Bar/Psi
Air Flow
Lpm/Scfm
703540
Base coats
Clearcoats
HV30
1.4–1.6 bar
20–24 psi
411–467 LPM
14.5–16.5 CFM
703538
Base coats, low
solids clearcoats
TE10
1.4–2.4 bar
20–35 psi
212–311 LPM
7.5–11.0 CFM
703539
Base coats, high
solids clearcoats
TE20
1.1–1.8 bar
16–26 psi
255–340 LPM
9–12 CFM
* Waterborne compatible when using a
plastic or disposable cup system.
Refer to Technical Bulletin: TB-1008

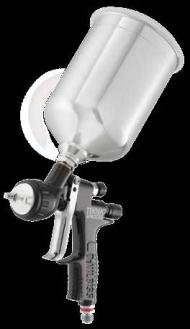

TEKNA
®
ProLite
Gravity Spray Gun
Includes:
• HAV-555 air adjusting valve
with digital gauge
• Gun wrench
• Color identification rings
• Additional fluid tips
• QuickClean™ coating
3 Models Available!
Cupped or Uncupped
Air Inlet
Torque to 15 ft-lbs (20Nm)
Use medium strength thread
sealant (i.e. Devon #2242 Blue or
equivalent) on threads
Fluid Nozzle
Torque to 13-15 ft-lbs
(18-20 Nm)
Ref # Description
Part # Qty
1 Air Cap Retaining Ring
1
2 Slip Ring
1
3 Air Cap
1
4 Air Cap Retaining Clip
191972
1
5 Retaining Ring Seal
1
6 Aircap & Ring
Chart 1
1
7 Air Cap Retaining Ring & Seals
702725
1
8 Fluid Nozzle
Chart 2
1
9 Spray head
1
*10 Spray head Seal
702726
1
11 Spray head kit
703529
1
*12 Circlip
1
13 Valve Body
1
*14 O Ring
1
*15 Spreader Valve Pin
1
16 Spreader Valve Adjusting Knob
1
17 Spreader Valve Assembly
702730
1
18 Front Valve Seal
1
19 Valve Seat
1
20 Spindle
1
21 Air Valve Spring
1
22 Rear Valve Seal
1
23 Air Valve Kit
703530
1
24 Fluid Needle
703531
1
25 Needle Spring
1
26 Spring Pad
1
27 Housing & Seal Kit
703532
1
28 Fluid Adjusting Knob
703533
1
*29 Needle Spring Kit
703534
1
30 Gunbody
1
31 Air Inlet
1
32 Colour ID Ring Kit (4 Colours)
702735
1
33 Air Inlet Kit
702734
1
34 Needle Packing
1
35 Packing Spring
1
36 Packing Nut
1
*37 Packing, Spring and Packing Nut Kit
702731
1
*38 Trigger Screw
1
39 Trigger
1
*40 Trigger Stud
1
41 Trigger Stud & Screw Kit
703535
1
42 Plug
1
43 Cheater Valve (optional)
702737
1
44 Air Valve Service Tool (only included in
the Air Valve Kit 23)
1
Fluid Nozzles
Fluid Nozzle
Order No.
No. on
Fluid Nozzle
Tip Size
(mm)
703521
PRO-200-12 1.2
703522
PRO-200-13 1.3
703523
PRO-200-14 1.4
703589
PRO-200-15 1.5
Service Parts
Spray Gun repair kit (inludes items marked *) 703536
Seal and Pin Kit, kit of 5 (items 12, 14 and 15) 192229
703517,
703567
703566
www.autorefinishdevilbiss.com
TEKNA
®
Guns and Accessories
4
EPA Compliant.
Approved in most
HVLP areas.
EPA and
SCAQMD
Approved
*
HAV-555
