QC3 Filter and Dryer Unit

QC3 Dryer Unit

Light Duty, Compact Air Filter/Dryer

Removes water, oil and humidity from compressed air. A great choice for light usage such as low volume shops, restorers, customizers, and hobbyists

  • Three-stage filtering with 0.1 micron rating produces clean, oil- and humidity-free air.
  • High performance filtration with only 2 PSI pressure drop.
  • Quick change filter cartridge is easy to maintain. Bowl removal tool included.
  • Larger filter media and longer life desiccant than disposable dryers
  • Patents Pending

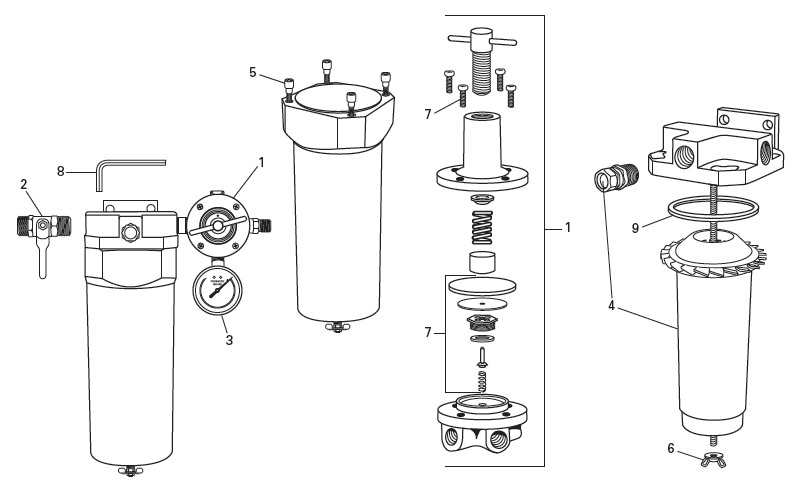

QC3 Filter & Dryer Unit Parts & Accessories

QC3 Filter & Dryer Unit

Ref. No.
Order No.
Model No.
Description
Parts Req.
1 130100 HAR-520 Regulator 1
2 802188 VA-595 Shut-Off Valve 1
3 192314 GA-375 Pressure Gauge 1
4 130524 130524 Cartridge, Dryer Filte r• 1
5 Purchase Locally Socket Head Screw, 1/4-20 @ 3/4 4
6 Purchase Locally Wingnut, 1/4-20 1
7 802112 KK-5088 Regulator Repair Kit 1
8 Purchase Locally 5mm Hex Key Wrench 1
9 803094 HAF-45 Gasket, Filter Bowl 1

• Cartridge includes indicator window & humidity paper
