DAD-500™

The DAD-500 system is an industry leader among air dryer systems. Remove oil, water, dirt and other contaminants from your compressed air to allow a high quality finish job. Even the tiniest of particles can have an affect on how your current paint job will turn out. With routine cleaning and maintenance, you can achieve a high quality finish every time.

DAD-500™ Desiccant Air Dryer System

Avoid Costly Redos with the Dryer System

Properly Maintained Air Filtration Systems Eliminate Moisture and Dirt in Air Lines

The DAD-500™ Dryer System also includes a 1/2" ball valve shutoff for easy maintenance.

DAD-500 Air Filtration Dryer System

3-Stage Desiccant Dryer
Order No. 130026
Model No. DAD-500

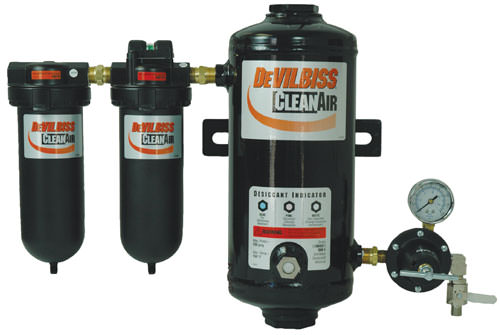

DAD-500™ Air Dryer System

13-0041 (HAF-502) Water Separator Filter Specifications

  • Air Inlet and Outlet ½" NPT(F)
  • Flow Capacity 100 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150˚F (65.6˚C)
  • Automatic Drain Standard
  • Filter 5 micron

HAF-505 Oil Coalescing Filter Specifications

  • Air Inlet and Outlet ½" NPT(F)
  • Air Flow Capacity 55 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150˚F (65.6˚C)
  • Automatic Mechanical Drain Standard
  • Pressure Differential Indicator Standard
  • Filter 0.01 micron

Desiccant Air Dryer Specifications

  • Dryer Air Inlet and Outlet ½" NPT(F)
  • Flow Capacity 25 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150˚F (65.6˚C)
  • Humidity Indicator Standard Dryer
  • Water Vapor Removal And Dryer -40˚F Dew Point

HAR-507 Air Regulator Specifications

  • Inlet 3/8" NPT(F)
  • Outlet ¼" NPT(F) (3 each)
  • Flow 60 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 120˚F (48.9˚C)

VA-595 Main Air Supply Shut Off Valve Specifications (not shown)

  • Air Inlet and Outlet ½" NPT(M)
  • Maximum Operating Pressure 175 PSIG (12.0 Bar)

DAD-500™

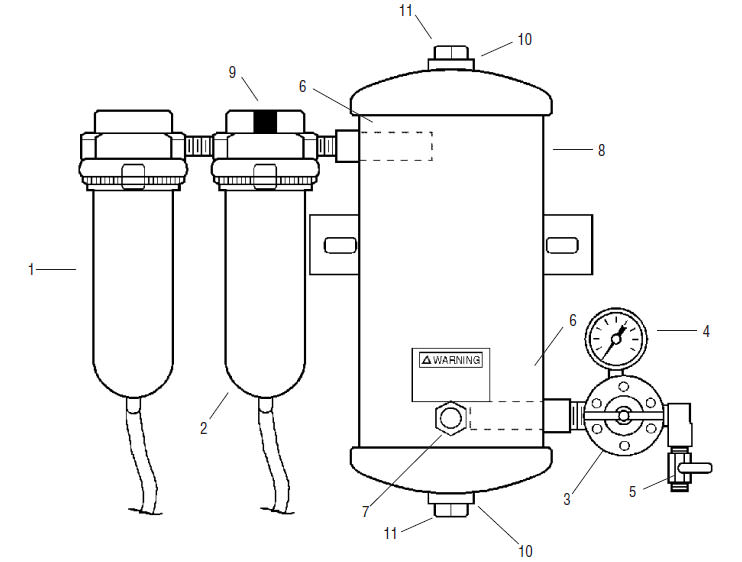

DAD-500 Parts View

Ref. No. Order No. CT Plus™ Description Parts Req.
1 130041 13-0041 Water Separator Filter 1
2 130027 HAF-505 Oil Coalescing Filter 1
3 130059 HAR-507 Air Regulator 1
4 190564 GA-288 Gauge 1
5 240039 VA-542 Ball Valve 1
6 191953 DAD-8 Air Filter (inside of tank) 2
7 190895 DAD-400 Humidity Indicator (paper incl.) 1
8 190877 PT-417 Desiccant Tank (w/o Desiccant) 1
9 190883 HAF-404 Filter Change Indicator 1
• 130030 DAD-600 Tune-Up Kit 1
+ 190831 DAD-1 Desiccant Refill 1
+ 190727 HAF-6 First stage water separator filter element (5 microns) 1
+ 190845 HAF-28 Second stage coalescing filter element (.01 microns) 1
10 802153 SSG-8217-K2 O-Ring Ki 1
11 802154 PT-96 Pipe Plug special - 1-1/2 NPT 2
12 801288 VA-595 Brass Shut-Off Valve (not shown) 1

•Tune-Up Kit
+Key Maintenance Items (replace periodically for efficient performance)

Download the Full Parts Sheet
