The Ultimate in Primer Spray Gun Technology

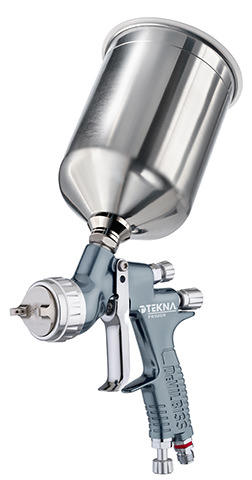

The TEKNA® Primer Spray Gun is the top choice amongst industry professionals. Favored for its ability to deliver consistently large spray patterns with even material distribution, ensuring a professional finish with greater application efficiency. This auto spray gun is suitable for all types of primers, surfacers, fillers, and polyesters, making it an ideal choice for various automotive applications.

UV Set-Up Accessories
For the application of new generation UV primers, UV set-up accessories are available, including UV1 and UV2 fluid tips, a dedicated fluid needle, a black polyester gravity cup, and a protective air cap cover.

  • Large spray patterns and even material distribution
  • Suitable for all types of primers, surfacers, fillers and polyesters
  • Balanced air valve design for lighter trigger pull and improved air flow
  • UV set-up accessories are available for the application of new generation
    UV primers. Accessories include UV1 and UV2 fluid tips, dedicated fluid
    needle, black polyester gravity cup and protective air cap cover

Features and Performance

Air Caps: While both are available, users have reported preferring the PR10 High Efficiency air cap, which uses less air compared to the PR30 HVLP air cap, making it more efficient without compromising performance.


Fluid Tip Size Ranges: Available in 1.4mm, 1.6mm, 1.8mm, 2.0mm, and 2.5mm needle/nozzle sizes, the TEKNA® Primer Spray Gun offers versatility and precision.
Balanced Air Valve: The balanced air valve design allows for a lighter trigger pull and improved air flow, reducing user fatigue and enhancing control.


Superior Finish Quality: Users have reported that the primer lays extremely flat, outperforming other spray guns in its class. The TEKNA® Primer Spray Gun ensures a flawless finish, making it a preferred choice among professionals.

By incorporating advanced technology and high-quality materials, the TEKNA® Primer Spray Gun stands out in the market of automotive spray guns. Upgrade your priming process with the TEKNA® Primer Spray Gun.


All Models Include:

  • TEKNA® Primer Spray Gun
  • PR10 (High Efficiency) and PR30 HVLP Air Caps
  • 900cc Aluminum Cup
  • Gun Wrench



Order No. Air Cap Needle/Nozzle Cup Type
704174 PR10 (HE) & PR30 (HVLP) 1.4, 1.6 900 cc Aluminum
704175 PR10 (HE) & PR30 (HVLP) 1.8, 2.0 900 cc Aluminum
704182 PR10 (HE) & PR30 (HVLP) 2.5 900 cc Aluminum

UV Accessories
Order No. Model No. Description
704245 PRIPRO-219-UV1-K UV1 Fluid Tip
704246 PRIPRO-219-UV2-K UV2 Fluid Tip
704247 PRIPRO-319-K UV Fluid Needle
704240  GFC-515 Black Polyester UV Gravity Cup
704241  PRO-46-K3 Protective Air Cap Cover (pack of 3)




TEKNA® Primer Air Caps

PR10 High Efficiency Air Cap

PR10 High Efficiency Air CapPrimers including low VOC

Inlet Pressure: 26-29 PSI, 1.8-2.0 BAR

Air Flow: 12.0 CFM, 311-340 LPM

Tips: 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.5mm

Order No: 704165



PR30 HVLP Air Cap

Primers including low VOCPR30 HVLP Air Cap

Inlet Pressure: 17-21 PSI, 1.2-1.4 BAR

Air Flow: 16.0 CFM, 396-453 LPM

Tips: 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.5mm

Order No: 704166
