TEKNA^® ProLite Pressure Feed

Features:

High transfer efficiency for increased material savings
Includes two air caps which provide exceptional fluid flow, high productivity, and versatility
Uniform spray pattern yields optimum metallic control

Spray Gun Coating has non-stick properties for fast and easy clean up
The spray gun is fully coated inside and out for high corrosion resistance and protection
Scratch resistant coating keeps your gun looking newer for a longer period of time

Order No.	Fluid Nozzles (mm)	Cup Type	Air Caps	Analog Gauge
703624	1.0, 1.4	None	TE40, HV40	HAV-512
703663	1.0,1.2,1.4	None	TE40, HV40	HAV-512

11" Air Cap Pattern High Efficiency

Spray Pattern:

10–12” long

12–19 CFM @ 6–50 PSI

Coatings:

Low to Medium Solids

5–12 oz./min.

Order No. 703539

*TE20 sold separately

11" Air Cap Pattern High Efficiency

Spray Pattern:

11–13” long

13–19 CFM @ 29–50 PSI

Coatings:

Low to High Solids

5–16 oz./min.

Order No. 703626

11" Air Cap Pattern HVLP

Spray Pattern:

11–13” long

10.5 CFM @ 17 PSI

Coatings:

Low to High

Solids

5–12 oz./min.

Order No. 703621

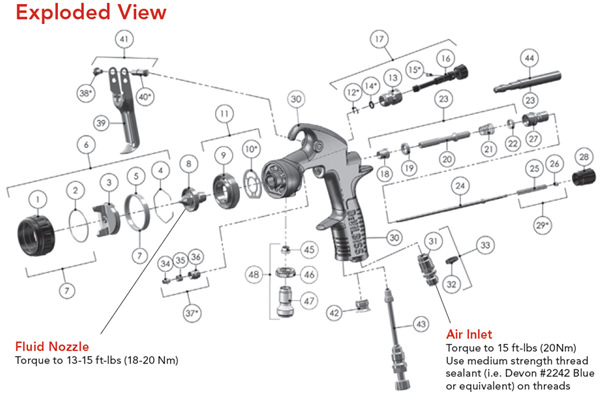

Ref. No.

Part No.

Model No.

Description

Parts Req.

1	—	—	Air Cap Retaining Ring	1
2	—	—	Slip Ring	1
3	—	—	Air Cap	1
4	191972	—	Air Cap Retaining Clip	1
5	—	—	Retaining Ring Seal	1
6	See Chart 1	—	Aircap & Ring	1
7	702725	—	Air Cap Retaining Ring & Seals	1
8	See Chart 2	—	Fluid Nozzle	1
9	—	—	Spray head	1
10	702726	—	Spray head Seal	1
11	703529	—	Spray head kit	1
12	—	—	Circlip	1
13	—	—	Valve Body	1
14	—	—	O Ring	1
15	—	—	Spreader Valve Pin	1
16	—	—	Spreader Valve Adjusting Knob	1
17	703630	—	Spreader Valve Assembly	1
18	—	—	Front Valve Seal	1
19	—	—	Valve Seat	1
20	—	—	Spindle	1
21	—	—	Air Valve Spring	1
22	—	—	Rear Valve Seal	1
23	703530	—	Air Valve Kit	1
24	See Chart 2	—	Fluid Needle	1
25	—	—	Needle Spring	1
26	—	—	Spring Pad	1
27	703532	—	Housing & Seal Kit	1
28	703533	—	Fluid Adjusting Knob	1
29	703534	—	Needle Spring Kit	1
30	—	—	Gunbody	1
31	—	—	Air Inlet	1
32	702735	—	Colour ID Ring Kit (4 Colours)	1
33	702734	—	Air Inlet Kit	1
34	—	—	Needle Packing	1
35	—	—	Packing Spring	1
36	—	—	Packing Nut	1
37	702731	—	Packing, Spring and Packing Nut Kit	1
38	—	—	Trigger Screw	1
39	—	—	Trigger	1
40	—	—	Trigger Stud	1
41	703535	—	Trigger Stud & Screw Kit	1
42	—	—	Plug	1
43	702737	—	Cheater Valve (optional)	1
44	—	—	Air Valve Service Tool (only included in the Air Valve Kit 23)	1
45	—	—	Seal	1
46	—	—	Lock Nut	1
47	—	—	Fluid Inlet	1
48	703631	—	Fluid Inlet Kit	1
