Refer to Service Bulletin: SB-2-200
Includes:
• 900cc aluminum cup with
push-on lid
• Spray gun lube
• Clear anodized finish

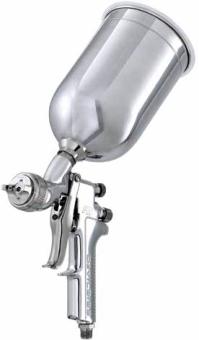

PRi
®
HVLP Gravity Feed
Primer Gun/cup
Order No.
Model No.
803248 PRI-612G
The Start of a Great Finish
• Reduces sanding and overspray
• Sprays a wide variety of primers and
other undercoats
PRi
®
Gravity Feed HVLP Primer Air Cap
#101 air cap
(HVLP)
Primers including low VOC
Air Cap Order No.
192187
Air Cap Model No.
PRI-407-101
16 CFM @ 30 PSI inlet
Air Cap
Pattern
11"
Fluid tips
1.2 mm, 1.3 mm,
1.4 mm,
1.5 mm, 1.6 mm,
1.8 mm,
2.0 mm, 2.2 mm
(Included tip sizes shown in bold)
PRi
®
HVLP Gravity Feed Primer Gun
Order No.
Model No. Type
Fluid Tip
(mm)
Inlet
Pressure Application
803248
PRI-612G
HVLP 1.4, 1.8 15-20 PSI Primer surfacers
DETAIL #8
3-Piece Needle
Packing Assembly
11
12
13
14
16
18
15 17
Air Inlet Nipple ¼" NPS(M)
(Torque to 15 ft.-lbs.)
*Use medium strength thread sealant
(i.e. Loctite 242) on threads.
*Fluid Tip
(Torque to
15-20 ft.lbs.)
36
10
33 34 35
37
(optional)
32
26*
30
31
27
28
29
24 23 22 21
25
20
19 12
9
(See Detail #8)
8
3
1
2
5
6
7
l
192227 (KK-5058-2) Gun Repair Kit includes a quantity of necessary parts.
Suffixes:
-K5, -K10 designate kits of multiple parts. Example: JGA-4035-K5 is a kit of
5 packings.
www.autorefinishdevilbiss.com
Gravity Guns
11
• Gun Repair Kit 192227
(KK-5058-2)
Ref.
No. Description
Qty.
6 Baffle Seal
1
8 Packing
1
12 Gasket Kit
2
14 Fluid Needle Spring 1
15 Spring Pad
1
19 Air Valve Spring
1
20 Air Valve
1
22 U Cup Seal
1
23 Washer
1
24 Snap Ring
1
32 Fluid Cup Gasket
1
33 Retaining Clip
1
34 Seal
1
35 Pin
1
Ref.
No.
Order
No.
Model
No.
Description
Ind.
Parts
Req.
1 — —
Primer Air Cap
1
2 191972 JGA-156-K10 Spring Clip (Kit of 10)
1
3 192042 GTI-3
Air Cap Retaining Ring
1
4 192187 PRI-407-101 Primer Air Cap and Retaining Ring 1
5
See Chart 1
Fluid Tip
1
•6 192179 GTI-33-K5
Baffle Seal (Kit of 5)
1
7 192178 GTI-425
Baffle Assembly
1
•8 192109 JGA-4035-K5 Packing (Kit of 5)
1
9 190893 34411-122-K10 Packing Nut
1
10 192050 GTI-404
Spreader Valve
1
11 192054 GTI-413
Fluid Needle
1
•12 190161 JGS-72-K10 Gasket Kit (PTFE) (Kit of 10)
2
13 — —
Body Bushing
1
•14 — —
Fluid Needle Spring
1
•15 — —
Spring Pad
1
16 190894 MBD-19-K10 Spring and Pad (Kit of 10)
1
17 192043 GTI-414
Needle Adjusting Screw
1
18 192139 KK-5059
Bushing, Spring, Pad and Knob Kit
1
•19 — —
Air Valve Spring
1
•20 — —
Air Valve
1
21 — —
Air Valve Body
1
•22 — —
U Cup Seal
1
•23 — —
Washer
1
•24 — —
Snap Ring
1
25 190780 JGS-449-1
Air Valve Assembly
1
26 190287 P-MB-51
Air Inlet Nipple1/4" NPS(M)
1
27 — —
Trigger Stud Screw
1
28 — —
Trigger Stud
1
29 190889 JGS-478
Stud and Screw Kit
1
30 — —
Trigger
1
31 191943 JGS-477-1
Trigger, Stud, Screw Kit
1
•32 190181 KGP-13-K5
Fluid Cup Gasket (Kit of 5)
1
•33 — —
Retaining Clip
1
•34 — —
Seal
1
•35 — —
Pin
1
36 192229 GTI-428-K5 Clip, Seal & Pin Kit (5 Each)
1
37 192219 —
Gun Holder, Coated (Optional)
1
Chart 1
Fluid Tip
Order No. Model No.
Tip Size I.D.
in.
mm
192124 GTI-213-12 .047 1.2
192134 GTI-213-13 .051 1.3
192044 GTI-213-14 .055 1.4
192135 GTI-213-15 .059 1.5
192045 GTI-213-16 .063 1.6
192046 GTI-213-18 .070 1.8
192047 GTI-213-20 .079 2.0
192132 GTI-213-22 .086 2.2
