* Waterborne compatible when using
a plastic or disposable cup system.
*
Refer to Part Sheet SBBI-2-181
Order No.
901210
Model No.
6924-0000-0

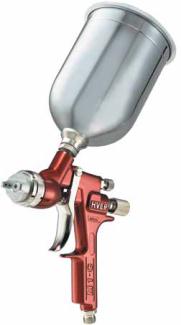

M1-G
HVLP Gravity
Feed Gun/cup
Proven Performance
Low air volume requirements
Quality finishes with low to medium
solids materials
Includes:
• 1.4 mm fluid tip
• 900cc aluminum cup with
push-on lid
• Spray gun lube, fluid filter,
gun hook
M1-G Gravity Feed HVLP Air Cap
93P air cap Base coats, clearcoats, single stage,
waterbornes
(when used with GFC-501
or DeKups)
Air Cap Order No.
900361
Air Cap Model No.
46-9300
10 CFM @ 18 PSI inlet
Air Cap
Pattern
10"
Fluid tips
1.2 mm (92), 1.3 mm (93),
1.4 mm (94),
1.7 mm (97)
(Included tip sizes shown in bold)
M1-G HVLP Gravity Feed Gun
Order No.
Model No.
Type
Fluid
Tip
(mm)
Inlet
Pressure Application
901210
6924-0000-0
(94 x 93P)
HVLP 1.4 18 PSI
Base coats, clearcoats, single
stages, waterbornes
Chart 1
Fluid Nozzle
No.
Order No.
Tip Size I.D.
in.
mm
93 900313 (45-9300) .052 1.3
94 900314 (45-9400) .055 1.4
95 900318 (45-9500) .059 1.5
97 900321 (45-9700) .070 1.8
s
Gun Repair Kit 900847
(54-4367-1)
Ref.
No. Description
Qty.
5 Seal
1
9 Retaining Ring
1
10 O-Ring
1
11 O-Ring
2
13 Spring, Yellow 1
14 Spindle
1
15 Spring, Blue
2
21 Seal Cartridge
1
H
O-Ring & Retainer Kit
900926 (54-5224)
Ref.
No. Description
Qty.
11 O-Ring
2
12 Seal Retainer
2
† Torquing Information
Ref.
No. Description
Qty.
3 Fluid Nozzle 10–12 Ft. Lb.
4 Head Insert
20–23 Ft. Lb.
8 Side Port
4–6 Ft. Lb.
16 Housing
15–17 Ft. Lb
19 Air Connection 15–17 Ft. Lb.
l
Screw, Stud & Cap Kit
900925 (54-5223)
Ref.
No. Description
Qty.
6 Trigger Stud
1
7 Trigger Screw 1
22 Valve Spindle Cap 1
25
22
20
21
5
4
2
3
1
6
23
7
15
12
11
16
17
18
15
11
12
13
14
9
10 8
24 (Optional)
19
Must be replaced
whenever #4
is removed
(See Chart 1)
Air Inlet Nipple
¼" NPS(M)
(Torque to 15 ft.lbs.)
Use medium strength thread sealant
(i.e. Devcon #2242 Blue, or equal)
on threads.
www.autorefinishdevilbiss.com
Gravity Guns
12
Ref.
No.
Order
No.
Model
No.
Description
Ind.
Parts
Req.
1 900636
54-3531 Retaining Ring
1
2 900361
46-9300 Air Nozzle
1
3 See Chart 1†
Fluid Nozzle
1
4 900848† 54-4368† Head Insert
1
s
5 900850
54-4369-5 Head Insert Seal Ring (Kit of 5)
1
l
6 —
— Trigger Stud
1
l
7 —
— Trigger Screw
1
8 900843† 54-4364† Side Port Control Assembly
1
s
9 —
— Retaining Ring
1
10 —
— O-Ring
1
sH
11 —
— O-Ring
2
H
12 —
— Seal Retainer
2
s
13 —
— Spring, Yellow
1
s
14 900623
54-3512 Spindle Assembly
1
s
15 —
— Spring, Blue
2
16 900640† 54-3541† Housing
1
17 900858
54-4382 ABSS Needle
1
18 900659
54-3606 Material Valve Control Knob
1
19 900990† 54-768† Air Connection
1
20 900841
54-4360 Trigger
1
s
21 900851
54-4370 Seal Cartridge Assembly
1
l
22 —
— Valve Spindle Cap
1
s
23 192151
KGP-13-K5 Cup Gasket (Kit of 5)
1
24 900712
54-3918 Wrench (Optional)
1
25 192219
192219
Gun Holder, Coated
1
