110264 GFG-670
Includes:
• 1.2 mm, 1.3 mm, and
1.4 mm fluid tips
• 900cc aluminum cup with
push-on lid
• HAV-511 high output air
adjusting valve with gauge
• Spray gun lube, fluid filter,
gun hook
PLUS
®

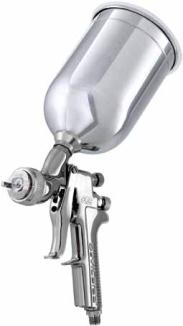

High Efficiency Gravity Feed Gun
Order No.
Model No. Type
Fluid Tip
(mm)
Inlet
Pressure Application
110264
GFG-670
HE
1.2 & 1.3
1.4
25–35 PSI
30–40 PSI
30–40 PSI
30–40 PSI
30–40 PSI
Base coats
High solids clearcoats
Single stages
Low solids clearcoats
Single stages
(Includes 1.2 mm, 1.3 mm, & 1.4 mm fluid tips)
PLUS
®
Gravity Feed High Efficiency Air Cap
#410 air cap Primers, base coats, clearcoats, single stage
and low VOC
Air Cap Order No.
192174
Air Cap Model No.
AV-440-410
30–40 PSI Inlet
9–11 CFM
Air Cap
Pattern
12½"
Fluid tips 1.0 mm,
1.2 mm, 1.3 mm, 1.4 mm
(Included tip sizes shown in bold)
PLUS
®
High Efficiency
Gravity Feed
GUN/CUP
EPA Compliant.
Approved in most
HVLP areas.
NEW!
Anodized
Finish
DETAIL #8
3-Piece Needle Packing
Assembly
Ref.
No. Order No.
Model No.
Description
Ind.
Parts
Req.
1 — —
#410 Air Cap
1
2 191972 JGA-156-K10 Spring Clip (Kit of 10)
1
3 192042 GTI-3
Air Cap Retaining Ring 1
4 192174 AV-440-410 #410 Air Cap and
Retaining Ring
1
5 See Chart 1 See Chart 1 Fluid Tip
1
• 6 192179 GTI-33-K5
Baffle Seal (Kit of 5)
1
7 192178 GTI-425
Baffle Assembly
1
•8 192109 JGA-4035-K5 Packing (Kit of 5)
1
9 190893 34411-122-K10 Packing Nut
1
10 192050 GTI-404
Spreader Valve
1
11 192054 GTI-413
Fluid Needle
1
•12 190161 JGS-72-K10 Gasket Kit (PTFE) (Kit
of 10)
2
13 — —
Body Bushing
1
•14 — —
Fluid Needle Spring
1
•15 — —
Spring Pad
1
16 190894 MBD-19-K10 Spring and Pad (Kit
of 10)
1
17 192043 GTI-414
Needle Adjusting Screw 1
18 192139 KK-5059
Bushing, Spring, Pad
and Knob Kit
1
•19 — —
Air Valve Spring
1
•20 — —
Air Valve
1
21 — —
Air Valve Body
1
•22 — —
U Cup Seal
1
•23 — —
Washer
1
•24 — —
Snap Ring
1
25 190780 JGS-449-1
Air Valve Assembly
1
26 190287 P-MB-51
Air Inlet Nipple 1/4"
NPS(M)
1
27 — —
Trigger Stud Screw 1
28 — —
Trigger Stud
1
29 190889 JGS-478
Stud and Screw Kit
1
30 — —
Trigger
1
31 191943 JGS-477-1
Trigger Stud, Screw Kit
1
•32 192151 KGP-13-K5
Cup Gasket (Kit of 5)
1
•33 — —
Retaining Clip
1
•34 — —
Seal
1
•35 — —
Pin
1
36 192229 GTI-428-K5 Clip, Seal & Pin Kit (5
Each)
1
37 192219 —
Gun Holder, Coated
1
38 192228 GTI-415
Air Adjusting Valve
(Optional)
1
Air Inlet Nipple
¼" NPS(M)
(Torque to 15 ft.lbs.)
Use medium strength thread
sealant (i.e. Loctite 242 Blue
or equal) on threads.
Fluid Tip
(Torque to
15-20 ft.lbs.)
17
15
14
13
12
16
18
10
32
26
11
3
1
2
5
6
7
4
8
9
20
25
24 23 22 21
19
12
(See DETAIL #8)
27
28
29
30
31
37
38
33 34 35
36
(Optional)
Refer to Service Bulletin: SB-2-194
www.autorefinishdevilbiss.com
Gravity Guns
9
Chart 1
Fluid Tip
Order No. Model No.
Tip Size I.D.
in.
mm
192215 AV-213-10 .039 1.0
192168 AV-213-12 .047 1.2
192169 AV-213-13 .051 1.3
192170 AV-213-14 .055 1.4
192172 AV-213-16 .063 1.6
192173 AV-213-18 .070 1.8
Setup Information by Paint Brand:
Request DeVilbiss paint company
recommendation chart or consult
your paint supplier specifications
for the material being sprayed.
• Gun Repair Kit 192227
(KK-5058-2)
Ref.
No. Description
Qty.
6 Baffle Seal
1
8 Packing
1
12 Gasket Kit
2
14 Fluid Needle Spring 1
15 Spring Pad
1
19 Air Valve Spring
1
20 Air Valve
1
22 U Cup Seal
1
23 Washer
1
24 Snap Ring
1
32 Fluid Cup Gasket
1
33 Retaining Clip
1
34 Seal
1
35 Pin
1
