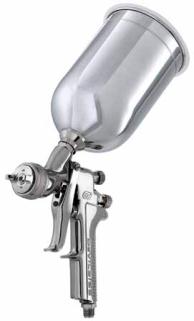

HVLP Base Coat/Clearcoat Gun
•Unique air cap design produces
painter-friendly pattern
• Excellent value
• Includes three different fluid tips
Order No.
Model No.
170156 GTI-620G
Includes:
• 1.3 mm, 1.4 mm, and
1.5 mm fluid tips
• 900cc aluminum
cup with push-on lid
• HAV-511 high output air
adjusting valve with gauge
• Spray gun lube, fluid filter,
gun hook
GTi
®
Millennium HVLP Gravity Feed Gun
Order No.
Model No. Type
Fluid Tip
(mm)
Inlet
Pressure Application
170156
GTI-620G
HVLP
1.3 & 1.4
1.5
20-25 PSI
25-30 PSI
20-25 PSI
25-30 PSI
Base coats
High solids clearcoats, single stages
Base coats
Low solids clearcoats, single stages
(Includes 1.3 mm, 1.4 mm, & 1.5 mm fluid tips)
GTi
®
Millennium Gravity Feed HVLP Air Cap
#2000 air cap
HVLP
Base coats, clearcoats, primers, single stage,
and low VOC
Air Cap Order No.
192136
Air Cap Model No.
GTI-407-2000
20–30 PSI inlet
12.5-16.0 CFM
Air Cap
Pattern
12"
Fluid tips
1.2 mm,
1.3 mm, 1.4 mm, 1.5 mm,
1.6 mm,
1.8 mm, 2.0 mm, 2.2 mm
(Included tip sizes shown in bold)
NEW!
Anodized
Finish
Refer to Service Bulletin: SB-2-168
GTi
®
Millennium
Hvlp Gravity
Feed gun/cup
www.autorefinishdevilbiss.com
Gravity Guns
8
Ref.
No. Order No.
Model No.
Description
Ind.
Parts
Req.
1 — —
Air Cap
1
2 191972 JGA-156-K10 Spring Clip (Kit of 10)
1
3 192042 GTI-3
Air Cap Retaining Ring 1
4 192136 GTI-407-2000 Air Cap (#2000) and
Retaining Ring
1
5 See Chart 1 See Chart 1 Fluid Tip
1
•6 192179 GTI-33-K5
Baffle Seal (Kit of 5)
1
7 192178 GTI-425
Baffle Assembly
1
•8 192109 JGA-4035-K5 Packing (Kit of 5)
1
9 190893 34411-122-K10 Packing Nut
1
10 192050 GTI-404
Spreader Valve
1
11 192054 GTI-413
Fluid Needle
1
•12 190161 JGS-72-K10 Gasket Kit (PTFE)
(Kit of 10)
2
13 — —
Body Bushing
1
•14 — —
Fluid Needle Spring
1
•15 — —
Spring Pad
1
16 190894 MBD-19-K10 Spring and Pad
(Kit of 10)
1
17 192043 GTI-414
Needle Adjusting
Screw
1
18 192139 KK-5059
Bushing, Spring,
Pad and Knob Kit
1
•19 — —
Air Valve Spring
1
•20 — —
Air Valve
1
21 — —
Air Valve Body
1
•22 — —
U Cup Seal
1
•23 — —
Washer
1
•24 — —
Snap Ring
1
25 190780 JGS-449-1
Air Valve Assembly
1
26 190287 P-MB-51
Air Inlet Nipple 1/4"
NPS(M)
1
27 — —
Trigger Stud Screw 1
28 — —
Trigger Stud
1
29 190889 JGS-478
Stud and Screw Kit
1
30 — —
Trigger
1
31 191943 JGS-477-1
Trigger Stud, Screw Kit
1
•32 192151 KGP-13-K5
Cup Gasket
(Kit of 5) Blue
1
•33 — —
Retaining Clip
1
•34 — —
Seal
1
•35 — —
Pin
1
36 192229 GTI-428-K5 Clip, Seal & Pin Kit
(5 Each)
1
37 192219 —
Gun Holder, Coated
1
38 192140 KK-5060
Air Cap Cleaning Kit
1
• A quantity of necessary parts is included in 192227 Repair Kit
(KK-5058-2) for complete gun repair and should be kept on hand for
service convenience.
Suffixes:
-K5 designates kit of multiple parts. Example: JGA-4035-K5 is a
kit of 5 packings.
Chart 1
Fluid Tip
Order No. Model No.
Tip Size I.D.
in.
mm
192124 GTI-213-12 .047 1.2
192134 GTI-213-13 .051 1.3
192044 GTI-213-14 .055 1.4
192135 GTI-213-15 .059 1.5
192045 GTI-213-16 .063 1.6
192046 GTI-213-18 .070 1.8
192047 GTI-213-20 .079 2.0
192132 GTI-213-22 .086 2.2
Setup Information by
Paint Brand:
Request
DeVilbiss paint company
recommendation chart or
consult your paint supplier
specifications for the
material being sprayed.
• Gun Repair Kit 192227
(KK-5058-2)
Ref.
No. Description
Qty.
6 Baffle Seal
1
8 Packing
1
12 Gasket Kit
2
14 Fluid Needle Spring 1
15 Spring Pad
1
19 Air Valve Spring
1
20 Air Valve
1
22 U Cup Seal
1
23 Washer
1
24 Snap Ring
1
32 Fluid Cup Gasket
1
33 Retaining Clip
1
34 Seal
1
35 Pin
1
192137 (GTI-5033-2000)
Air Cap Test Kit
Center Air
Port
Fan Air Port
5
4
DETAIL #8
3-Piece Needle
Packing Assembly
192140 (KK-5060)
Air Cap Cleaning Kit
Consists of:
2 brushes & 1 wirepick.
Helps keep air cap clean
and performing properly.
37
17
15
16
35
Air Inlet Nipple
¼" NPS(M)
(Torque to
15 ft.lbs.)
Use medium
strength thread
sealant (i.e. Loctite
242 Blue or
equal) on threads.
14
13
12
18
10
32
26
27
28
29
30
31
11
3
1
2
5
7
4
Fluid Tip
(Torque to
15-20 ft.lbs.)
8
9
20
25
24 23 22 21
19
12
(See DETAIL #8)
6
33 34
36
