Two air caps included:
• Trans-Tech High Efficiency
Technology (#510)
•HVLP (#505)
Comfortable and lightweight;
ergonomic design means reduced
painter fatigue.
Both models include:
spray gun lube,
fluid filter, gun hook, HAV-512 air
adjusting valve with gauge, air valve
assembly tool
HE/HVLP
Gravity Gun/Cup
Order No.
Model No.
802851 CVI-620G
Includes:
1.3mm & 1.4mm fluid nozzles;
900cc aluminum gravity cup with
push-on lid
HE/HVLP
Waterborne
Gravity Gun/Cup
Order No.
Model No.
802949 CVI-620GW
Includes:
1.3mm & 1.4mm fluid nozzles;
20 oz. Acetal gravity cup

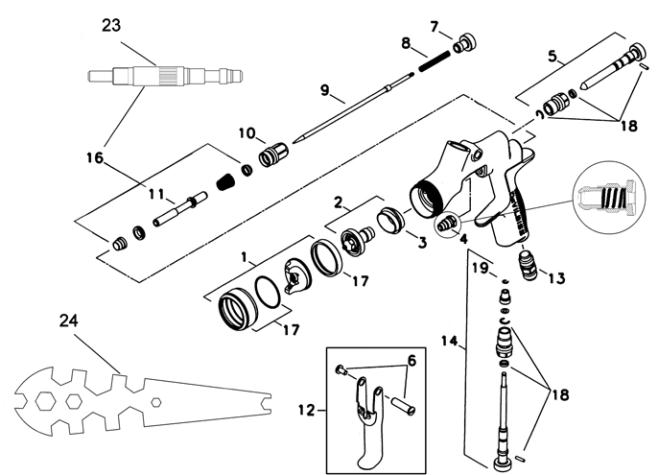

Ref.
No. Order No. Model No.
Description
Ind.
Parts
Req.
1 802841 SP-100-505-K Air Cap/Retaining Ring assy (#505) 1
1 802546 SP-100-510-K Air Cap/Retaining Ring assy (#510) 1
2a 802549 SP-200S-10-K Nozzle (1.0)
1
2b 802550 SP-200S-12-K Nozzle (1.2)
1
2c 802835 SP-200S-13-K Nozzle (1.3)
1
2d 802551 SP-200S-14-K Nozzle (1.4)
1
2e 802552 SP-200S-16-K Nozzle (1.6)
1
2f 802553 SP-200S-18-K Nozzle (1.8)
1
2g 802554 SP-200S-20-K Nozzle (2.0)
1
+ 3 802522 SP-626-K5 Separator
5
+ 4 802511 GTI-445-K2 Packing
2
5 802514 SP-403-K
Spreader Valve
5
6 — —
Stud and Screw
1
7 802518 SP-614-K
Needle Adjusting Screw
1
+ 8 802520 SP-622-K5 Spring
1
9a 802557 SP-300S-10-K Needle (1.0)
1
9b 802558 SP-300S-12-K Needle (1.2)
1
9c 802836 SP-300S-13-K Needle (1.3)
1
9d 802559 SP-300S-14-K Needle (1.4)
1
9e 802560 SP-300S-16-K Needle (1.6)
1
9f 802561 SP-300S-18-K Needle (1.8)
1
9g 802562 SP-300S-20-K Needle (2.0)
1
10 802517 SP-612-K
Air Valve Housing and Seal
1
11 — —
Spindle
1
12 703535 SP-617-CR-K Trigger, Stud and Screw
1
13 802516 SP-611-K
Connector
1
14 802513 SP-402-K
Airflow Valve
1
16 802524 SPK-101-K Air Valve Service Kit
1
17 802525 SPK-102-K Retaining Ring and Seals
1
+ 18 192229 GTI-428-K5 Clip, Seal and Pin Kit
5
23 — —
Air Valve Assembly Tool
1
24 802531 SPN-5-K
Spanner
1
+ Spray Gun Service Kit 803083 (SPK-402-K)
Ref
No. Description
Qty.
3 Separator
1
4 Packing
1
8 Spring
1
18 Clip, Seal and Pin Kit
1
Air Inlet Nipple
¼" NPS(M)
(Torque to 15 ft.lbs.)
Use medium
strength thread
sealant (i.e. Loctite
242 Blue or equal)
on threads.
CVi Gravity Feed Air Caps
#505
air cap
(HVLP)
Base coats, clearcoats, primers,
single stage, and low VOC
Air Cap Order No.
802841
Air Cap Model No.
SP-100-505-K
14-18 PSI inlet
10-13 CFM
Air Cap
Pattern
11¼"
#510
air cap
(HE)
Primers, base coats, clearcoats,
single stage, and low VOC
Air Cap Order No.
802546
Air Cap Model No.
SP-100-510-K
20-26 PSI inlet
7.5-9 CFM
Air Cap
Pattern
11½"
Fluid
Tips
1.0 mm, 1.2 mm,
1.3 mm, 1.4 mm,
1.6 mm,
1.8 mm, 2.0 mm
(Included tip sizes shown in bold)
Refer to Service Bulletin: SB-2-658
* Waterborne compatible when using a
plastic or disposable cup system.
*
EPA and
SCAQMD
Approved
